Features:
Technical Data:
SPECIFICATIONS:
| Order | Parameter | Specification parameters |
| one | Comparison mode | 1：N |
| two | Collection head type | Self learning capacitive press fingerprint head |
| three | Acquisition head resolution | 508dpi |
| four | Rejection rate | ＜0.1% |
| five | Fake admission rate | ＜0.001％ |
| six | Fingerprint collection range | ±180° |
| seven | Card Type | M1 |
| eight | user capacity | Total capacity of 250 sets: up to 100 fingerprints, up to 100 passwords, up to 50 faces, and up to 100 cards. Administrator ID range 000-009, regular user ID range 010-249 |
| nine | Operation records | Scroll 600 strip |
| ten | Battery life | Number of door openings greater than or equal 3000 times |
| eleven | working voltage | 7.0V~8.4V, low voltage alarm voltage 6.8 ± 0.2V |
| twelve | Dynamic power consumption | less than or equal 1A (no motor action, no playback sound |
| thirteen | Static power consumption | less than or equal 200uA (average power consumption |
| fourteen | Verification time | less than or equal 3s, (including the entire process of fingerprint collection, comparison, and unlocking signal output |
| fifteen | keyboard type | Touch sensing |
| sixteen | (OLED display screen | 0.96” OLED |
| seventeen | External emergency power supply for display screen | 5V1A Micro USB |
| eighteen | Antistatic ability | ≥8KV (contact) ≥15KV(Non-contact type) |
| nineteen | storage temperature | －25℃ ～ 80℃ |
| twenty | operation temperature | －25℃ ～ 70℃ |
| twenty-one | ambient humidity | 15%RH～ 93%RH |

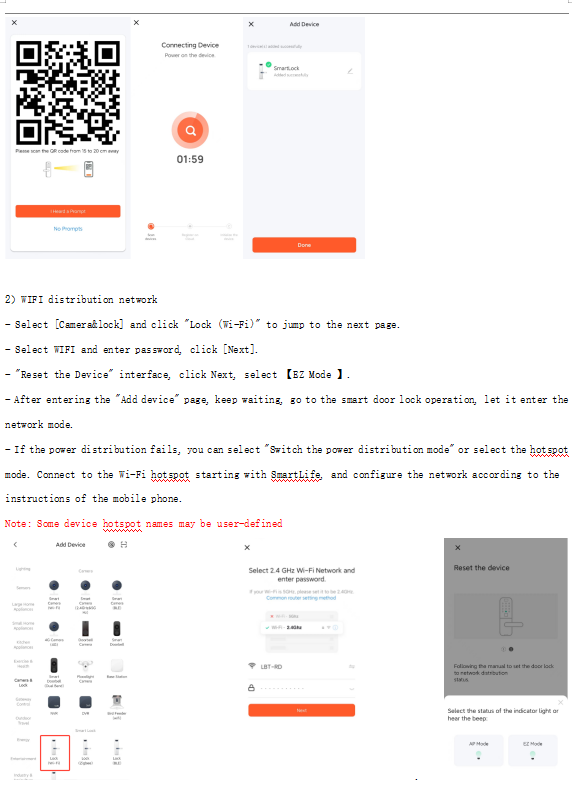

| twenty-two | Wi-Fi frequency band | 2400 MHz-2483.5 MHz |
TWO. Setting Description
1.initialization
Long press the settings button for 5 seconds, and the voice will broadcast: “Factory reset, NO(*) YES(#).” Press the # key to confirm, and the system will restart to its initial state.
In the initial state, any face, fingerprint, password, or card can unlock the device. Performing a factory reset operation cannot clear the set door-opening direction or torque parameters.
2.Low battery warning
If the system’s battery level is less than 25%, the system will voice prompt “Low power” ,The battery can still be unlocked about 50 times, but please charge it in a timely manner (or replace the battery).
3.External USB emergency power supply
Using USB emergency power supply, it takes approximately 30 seconds to unlock.
4.Illegal user alarm
Failed to unlock after 3 to 5 consecutive inputs, with voice message: ‘Illegal user, illegal intrusion, owner notified’. After the 5th broadcast, the system is locked for 90 seconds, during which time no user action is taken. Unlock after 90 seconds.
5.Virtual password
When using a password to unlock, any number can be added before and after the correct password, which can increase the security of the digital password. For example, if the password is “123456”, you can enter “426123456745” to unlock.
Note: The system can only recognize the first 16 digits
6.version number
Enter 999 # to read the system version number.
