ELECTRONIC HOTEL LOCK (P107 Series)

Descriptions:

P107 series is especially designed for the hotels with the desire of making sure the lock blends perfectly with the necessary hardware and the door.

P107 series is especially suited for the contemporary and modern hotel environment. It enhances the overall image of the corridor with the aesthetic lock’s design which perfectly blends into hotel decoration style.

Less on door, Always is more. With P107 RFID series, it allows architects and designers maximum design freedom and minimum appearance on door in terms of preserving the door aesthetics.

Features:

  • Auditing of up to 1000 events with emergency opening log.
  • Control via software, with stand alone or centralised management option.
  • Tropicalised circuit for high durability in humid environments.
  • 3-point stainless steel latch construction with antifriction mechanism.
  • Mortise equipped 20mm throw high strength deadbolt.
  • Panic release function – the deadbolt and latch are automatically retracted by inside handle for easy regress in emergency situation.
  • ADA compliant (guest with physical disabilities).
  • Future proof re-programmable FLASH RAM lock memory.
  • Powered by four AA alkaline batteries that provide up to 1 year normal life time.
  • 1000 events audit trail.
  • EEPROM memory that maintains the configuration when changing batteries.
  • High security mechanical override cylinder available.

Technical Data:

  • Power : 4 x 1.5V AA alkaline batteries
  • Battery Location:   Inside of the back lock
  • Material  Handles: aluminum alloy
  • Lock body: Stainless steel quality SUS304
  • Metal Finishes: satin nickel, black
  • Emergency Opening Options: Emergency Opening with Mechanical cylinder
  • Locking Mechanism: Electro-mechanical locking mechanism
  • Door Thickness: 35- 80mm
  • Data keeping: over 10 years
  • Storage Temperature: -40°C~80° C, non-condensing environment
  • Tested Operating Temperature :Tested from :-20°C~66°C
  • Supported RFID Standard: ISO 14443 A (MIFARE Classic)

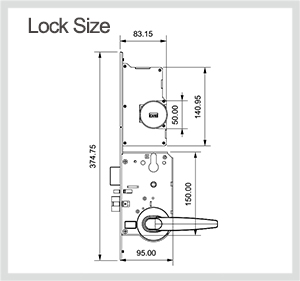

SPECIFICATIONS:
