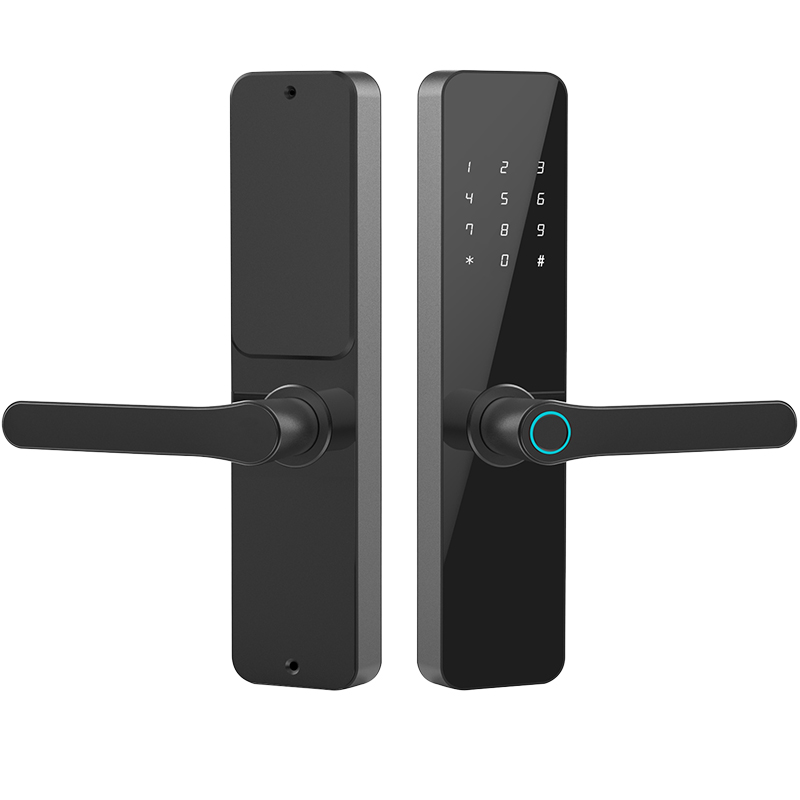

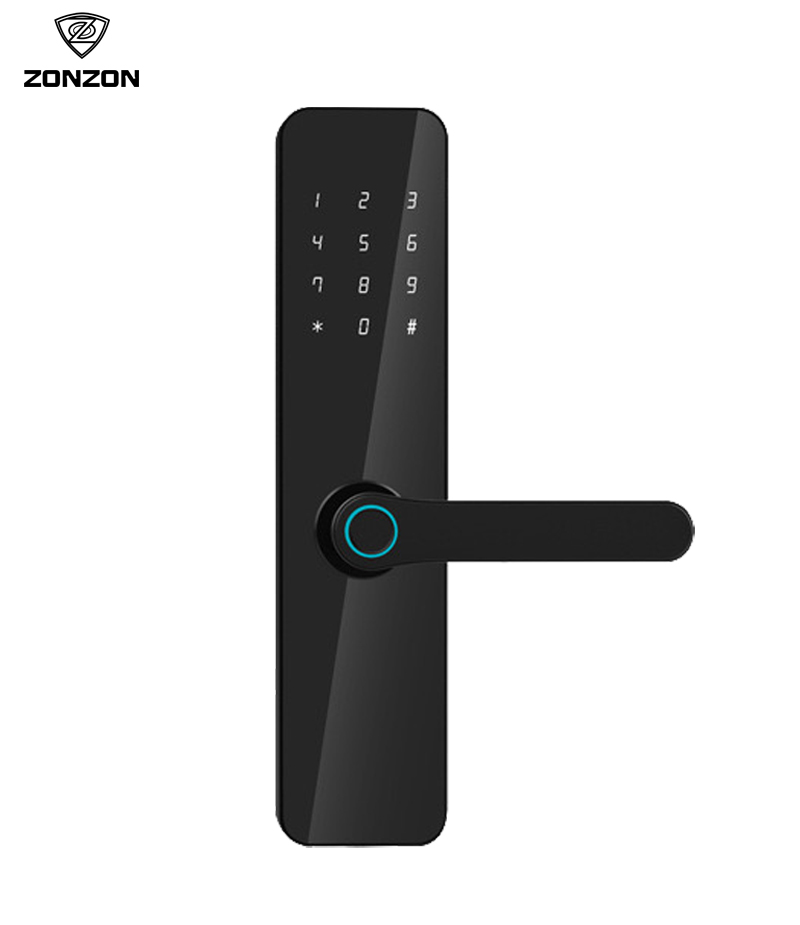

SECURE HOME LOCK (F7 Series)

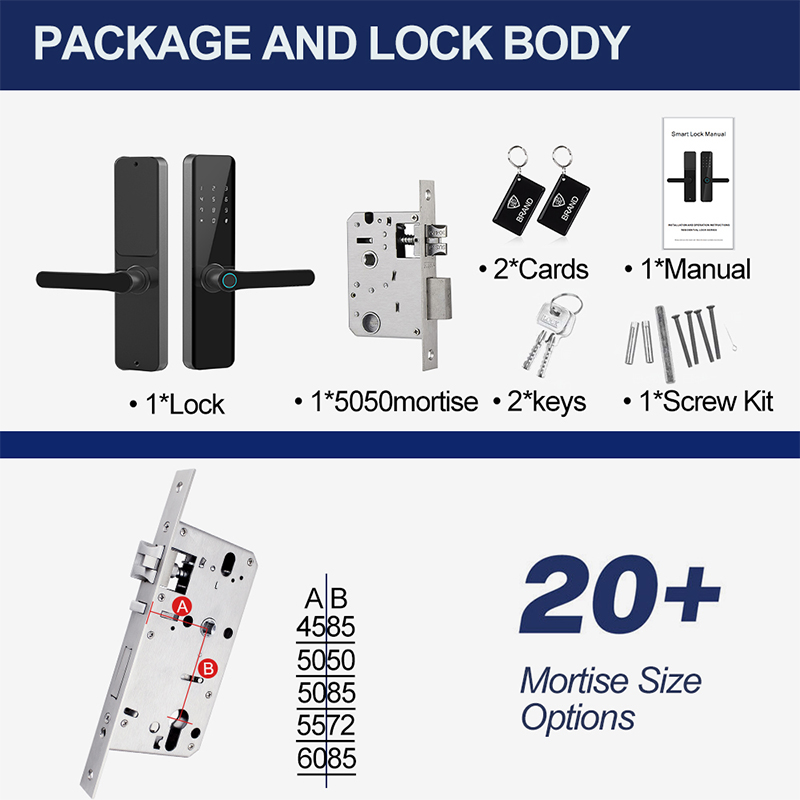

  • 50 & 60&70mm Backset Lockcase
  • Fingerprint & RF Card & Touchpad
  • Door Viewer+Screen(optional)
  • Power By Tuya or TTLOCK

Features:

    • Easy upgrade old mechanical lock to smart access control.
    • Battery power supply without hassle of cabling.
    • Multiple unlocking methods are available for selection and easy operation.
    • CE, FCC, RoHs, ANSI, and UL certificated.
    • 8 different language lock voice and manual;
    • Bluetooth, Zigbee, wifi versions are optional;
    • Compatible with the Tuya and TTLock apps and offer customizable options;
    • Can be controlled via voice commands through Google Assistant and Amazon Alexa.
    • 2-year warranty, 24/7 customer service and technical support.
    • Product knowledge, images, description, product video and skills training will be provided  by us.
    • No need to specify left/right direction when placing order.
    • Simple OEM Customization: Customized Logos,Packaging Colors/Finishings, etc.
    • Deep ODM Customization: Customized Appearance, Functions, Performance, Software Integration, Server Deployment, etc.

Technical Data:

  • Power : 4 x 1.5V AA alkaline batteries
  • Battery Location:   Inside of the back lock
  • Material  Handles: aluminum alloy
  • Lock body: Stainless steel quality SUS304
  • Metal Finishes: black
  • Emergency Opening Options: Emergency Opening with Mechanical cylinder
  • Locking Mechanism: Electro-mechanical locking mechanism
  • Door Thickness: 35- 50mm
  • Data keeping: over 10 years
  • Storage Temperature: -40°C~80° C, non-condensing environment
  • Tested Operating Temperature :Tested from :-20°C~66°C
  • Unlock APP: Tuya or TTLOCK

SPECIFICATIONS:
